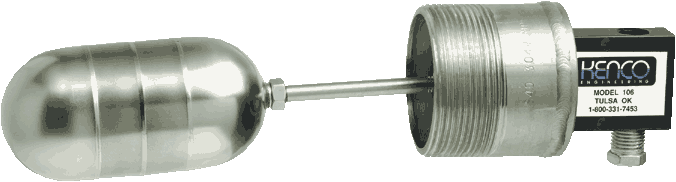

Design Data for Model 106
- Test Pressure - 250 psi.
- Operating pressure - 125 psi.
- Float Operating Specific Gravity - 1.00 or greater
(Consult factory for applications with a lower specific gravity.)
- Water Flow rate through Micro Valve - 0.70 GPM @ 60
psi. (valve is snap-acting for minimum gas or air requirement)
- Valve Connections - 1/4" Female NPT
- Switch Mounting - 2" NPT
- Materials of Construction - Stainless steel and nitrile
rubber wetted parts
