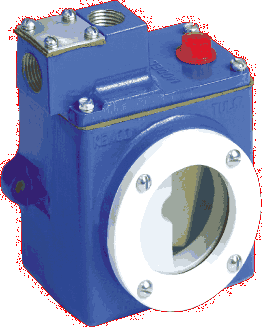

Model 512 -
Oil Level Controllers with
Case to Ground Electric Switch









OPERATING PRINCIPLE

The KENCO 512 utilizes the operating principles of both the oil level controller and the electric switch.




APPLICATIONS

Locations where space is limited and non-hazardous locations.





STANDARD MATERIALS OF CONSTRUCTION

  • Valve Seat - Nitrile
  • Optional Valve Seat Material - Fluorocarbon
  • Valve Orifice - Aluminum
  • Housing - Aluminum
  • Float Material - Closed Cell Polyurethane
  • Oil Inlet Screen - 20 Mesh Brass Cloth
  • Sight Window - Clear Polycarbonate (UV Stabilized)
  • Electrical connection: 1/2" FNPT




OIL INLET SPECIFICATIONS

  • Static Head Pressure Range - 1-12 ft.
  • No High Pressure Models Available




FLOW RATE TEST RESULTS

Tested at 30 º F with SAE 40

2' head - 10 GPD




ELECTRIC SWITCH SPECIFICATIONS

  • Switch Rating: 2 amp, 30 VAC or VDC
  • Switch trip point range: 3/16" to 1/2"
  • (Factory Set 1/2")
  • Circuitry case ground
  • Electrical Connection: 1/2" FNPT
  • Maximum Temperature: 180oF / 82oC




SHIPPING WEIGHT

3 lbs.
