Drum Gauges &
929 Pump Setting Gauges

  • Drum Gauges
    Drum Gauge
    779 Drum Gauge

    For Use on Horizontal
    55 Gallon Tanks

    • Saves Chemicals!
      Set your chemical pump accurately
    • Saves Money!
      Reduce inventory cost by seeing actual content of drum
    • Ease of Installation!
      Inserts in 3/4" NPT outlet of drum head
    • Corrosion Protection!
      Available in a wide range of materials for ultimate corrosion resistance

    596 Drum Gauge Mounts in the 3/4" outlet of a horizontal 55 gallon drum. The glass sight tube is protected by a cast aluminum frame which is calibrated in gallons and liters indicating liquid content of the drum.

    599 Drum Gauge Is supplied with a 3/4" ball valve which when closed provides a means for checking the pump rate of a chemical pump. The connection for the chemical pump suction port is 1/4" NPT and is located on the front of the mounting nipple.

    779 Drum Gauge Comes complete with a spring loaded test valve for checking injection rates of chemical pumps. This gauge also mounts in the 3/4" tank outlet and indicates tank volume in gallons and liters. The connection for the chemical pump suction line is 1/4" NPT and is located as shown in the photograph.

    779-KS Drum Gauge Is designed to accommodate the mounting of some diaphragm operated chemical pumps on its side mounted 1/4" NPT outlet. Use this gauge to check the operation of any chemical pump. It the check valve of the chemical pump is not functioning properly the fluid level in the sight tube of the drum gauge will pulsate between pump strokes when the valve of the gauge is closed.

    Product Selection Guide
    Wetted Materials Visual Gauge Gauge with Ball Valve for Rate Testing Gauge with Spring Loaded Test Valve Gauge with Test Value and Side Mounted 1/4" Outlet
    Carbon Steel, Glass, Fluorocarbon 596 599 779 779-KS
    304 Stainless Steel, Glass, Fluorocarbon 596-S 599-S 779-S 779-KS-S
    PVC, Glass, Fluorocarbon 596-PVC NA 779-PB NA

    Note: Aluminum Frame Not Wet with Chemical
    NA = Not Available

    Operating Instructions To check the pumping rate of a chemical pump -- depress the valve handle (or close the ball valve) closing the gauge glass off from the drum. Hold the valve closed for one minute and observe the change in level on the scale cast inside the gauge frame. The scale on the left hand side of the gauge is calibrated in quarts per twenty-four hours and the right is calibrated in liters per twenty-four hours.

    The maximum pump rate for the drum gauge is 25 gallons per day.

    787 Drum Gauge Provides a visual gauge indicating the chemical content of the drum and is supplied with a 2" ell for refilling the drum. The gauge is secured to the malleable iron elbow with a stainless steel clamp.

    810 Drum Gauge Is supplied with a vented 2" malleable iron elbow for refilling the drum and a test valve for checking the pumping rate.

    779-PB Drum Gauge Has a heavy-duty Schedule 120PVC head with a push-pull test valve. The Drum Gauge frame is our standard cast aluminum. There is a brace to support the weight of the gauge that is connected to the top of the drum rim and it also stabilizes the gauge from lateral movement. It has a 1/4" female NPT outlet.

    Optional Vent Connection
    The Drum Gauges are vented to atmosphere. These gauges can be supplied with a 1/4" NPT connection to vent the gauge back into the tank. To specify gauges with this connection, add "V" to the product number, i.e. 779-V

    Product Selection Guide
    Wetted Materials Gauge with Malleable Iron Filler Neck Gauge with Malleable Iron Filler Neck and Test Valve
    Carbon Steel, Glass, Fluorocarbon 787 810
    304 Stainless Steel, Glass, Fluorocarbon 787-S 810-S
    PVC, Glass, Fluorocarbon NA 810-PVC

    Other O-Ring Compounds Available Upon Request

    Repair Kits Gauge Glass Repair Kits

    • Gauges without Vent Connections....................A 593K
    • Gauges with Vent Connections........................A593KV

    Valve Repair Kits.......................................................A 943K

    Valve Assemblies Complete with "U" Bolts

    Valve Assembly Part No. 596 599 779 779-KS 787 810
    Model No . 598 6434 1208 1048 598-8 1210

    For 304 Stainless Steel valve assemblies add the suffix S to the part number and PVC to the part number for PVC valve assembles (Example: 598-PVC)

    929 Series of Pump Setting Gauges

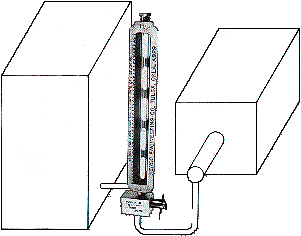

    This series of gauges provides a means for checking the pumping rate of any chemical pump UNDER ACTUAL PUMPING CONDITIONS IN ONE MINUTE. The gauge mounts in the pump's suction line between the reservoir tank and the pump. It provides a visual gauge showing the liquid level in the reservoir in addition to a rapid means for setting the pump.

    Model 929

    • 13" Cast Aluminum Frame
    • Carbon Steel Test Valve
    • Each Division is Pump Rate of 1 Qt/24 Hrs.
    • Wetted Parts Carbon Steel, Fluorocarbon and Glass

    Model 929-1-S

    • 13" Cast Aluminum Frame
    • NO Test Valve
    • Wetted Parts 304 Stainless Steel, Flourocarbon, and Glass
    • Each Division Pump Rate of 1 Qt/24 Hrs.

    Model 929-2

    • Coupler Plug for Movable Installation
    • 13" Cast Aluminum Frame
    • NO Test Valve
    • Wetted Parts 304 Stainless Steel,  Flourocarbon, and Glass
    • Multiple Point Use

    Model Number Maximum Pump Rate Overall Length Mounting Thread Top Connection
    929 10 GPD 13-3/4" 1/4" Female NPT 1/4" Female NPT
    929-1-S 10 GPD 13-3/4" 1/4" Male NPT 1/4" Female NPT
    929-2 10 GPD 13-3/4" Female Coupler Plug 1/4" Female NPT

    Accessory Items

    • 1061 Steel Coupler with 1/4" male NPT for movable (929-2) Gauge
    • 933-M Test Valve Only
    • 933-P Test Valve with 1061 Coupler

    Buna-N O-Rings available on request
